Capabilities

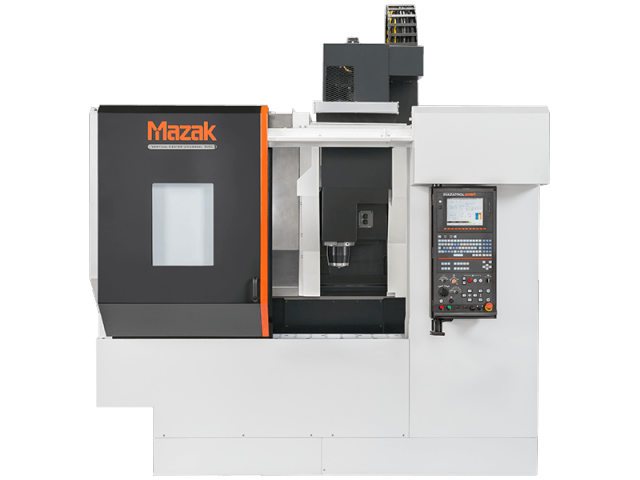

Mazak Vertical Center Universal 500C

Specification Values
Capacity Table Right/Left 39.400 in / 1000 mm
Table Longitudinal 19.700 in / 500 mm
Spindle Spindle Taper 40
Maximum Speed 12000 rpm
Motor Output (30 minute rating) 20.0 hp / 15 kw
Magazine Number of Tools 30
Feed Axes Travel (X Axis) 39.37 in / 1000 mm
Travel (Y Axis) 19.88 in / 505 mm
Travel (Z Axis) 20.07 in / 510 mm

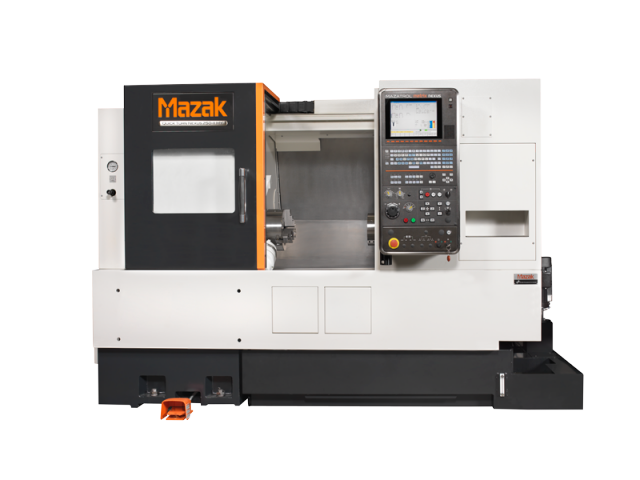

Mazak Quick Turn Nexus 250-II MY

Specification

Bed Length - 20 in





Capacity

Maximum Swing

26.50 in





Maximum Machining Diameter

14.750 in





Maximum Bar Work Capacity

3.0 in





Maximum Machining Length

19.858 in





Main Spindle

Chuck Size

10 in





Maximum Speed

4000 rpm





Motor Output

35.0 hp





Turret (Upper)

Number of Tools

12





Maximum Speed

4500 rpm





Motor Output

7.5 hp





Feed Axes

Travel (X Axis)

9.00 in





Travel (Y Axis)

4.00 in





Travel (Z Axis)

22.63 in





Support Equipment

Summit Engine Lathe (17x60)

Brown & Sharpe Micromaster Surface Grinding Machine

Bridgeport 815 Surface Grinder

Uni-Tek Manufacturing Tap Disintegrator

Hardinge Model 59 Lathe

Cincinnati 24 Drill

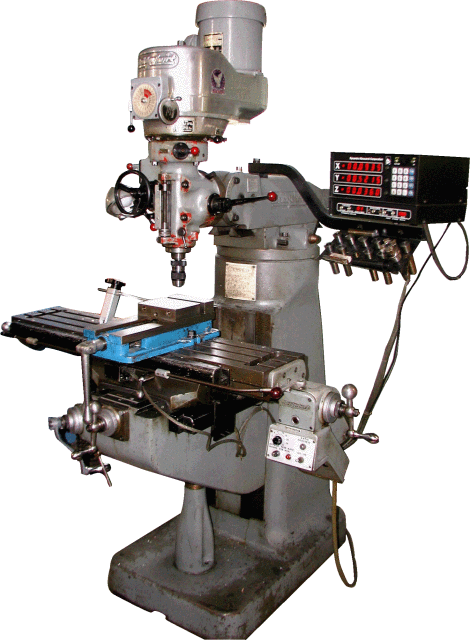

Bridgeport Mill

Roto-Finish Vibratory Finisher

400 Amp MIG Welder

Miller 250 Syncrowave
